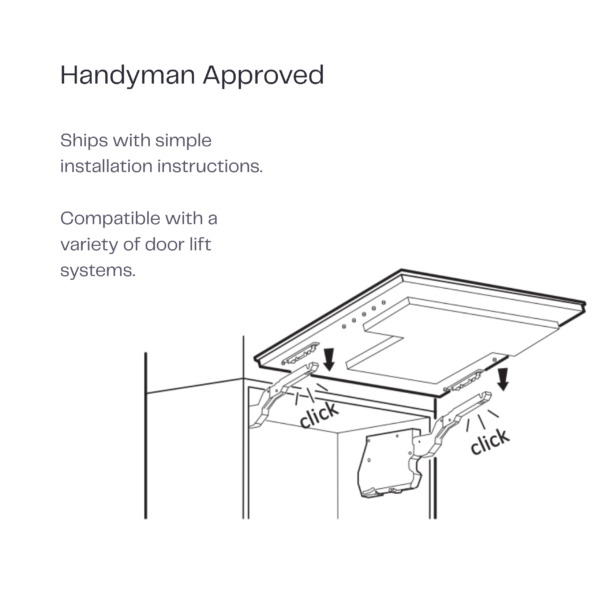

The DTC top stay SF NEW PUSH lifting mechanism is great for installing AVS240WS/ AVS240KS/ AVS2404BM/ AVS320KS/ AVS325KS/ AVS245WSBF televisions into kitchen cabinets. Thanks to the DTC mount, you can fully use the space behind the TV. This mechanism ensures smooth opening and closing. The opening angle is 90 or 107 degrees.
$149.99
9 in stock
$149.99
9 in stock
The DTC top stay SF NEW PUSH lifting mechanism is great for installing AVS240WS/ AVS240KS/ AVS2404BM/ AVS320KS/ AVS325KS/ AVS245WSBF televisions into kitchen cabinets. Thanks to the DTC mount, you can fully use the space behind the TV. This mechanism ensures smooth opening and closing. The opening angle is 90 or 107 degrees.
You must be logged in to post a review.
★★★★★
“I bought a good built-in TV for the kitchen from them. I am very pleased with the quality.”
Denis Kotov
Kitchen TV · via Trustpilot
★★★★★
“Just remodeled our house and installed Avel TV in our Sauna. Works great. Had slight issue with TV connecting to home network. Called customer service. Spoke with Charles. He was very helpful in resolving my issue. If you need a TV for your Sauna or Steam room, go with this company.”
Stephen St. Gelais
Sauna TV · via Trustpilot
★★★★★
“I had Parallel AV design a custom TV to replace a Seura 19″ in-wall TV (which failed and is no longer available) in my master bathroom vanity. … In the final design, the installation was perfect with no framing modifications needed. … If a custom sized TV replacement is needed to eliminate the cost and time to re-frame the site, I highly recommend using Parallel AV for replacement design.”
Leon
Custom Bathroom TV · via Trustpilot
Factory, where all design, production, and quality assurance happens
Consistent point of contact throughout the entire process
Surprises. What you sign off on is exactly what you get.
We design and build all of our televisions in our own factory, by hand. This allows us to control every precise measurement of your custom television, every single part that goes into its production, and the end-to-end QA and inspection process along the way.
You get a real plan and price within 24 hours of providing your requirements, and we don’t start building until you’ve signed off on the full design. No guessing, no surprises, and a real person on the other end the whole way through.
Our TVs are built from durable glass and steel to go where other televisions can’t. Bathroom showers, kitchen cabinets, saunas, living rooms, pool rooms, bar backs, gyms, retail, restaurants. If you can describe it, we’ve probably already built for it.
We design and build our shipping packaging just as carefully as the television. Every custom TV is unique, with its own nuances. Our shipping packaging is specifically designed for each individual project to ensure its protection while it’s on its way to you.
A one-man job for our smaller and medium size TVs
In-wall brackets included with every wall model
Days a week customer support
Our TVs are designed to be installed simply and effectively by the average handyman. Our in-wall TVs ship with the in-wall brackets. Our kitchen TVs literally replace your kitchen cabinet door.
Prefer to hang your TV on the wall or fasten it to an adjustable mount? We have you covered. Worried that our TV won’t fit your cabinets? We have options. And if you need something custom-made, our custom shop can likely get it done.
If you run into a problem or can’t figure something out, shoot us a note or give us a call.
certified water & steam resistant
starting size for shower installs
exposed ports or openings
Our TVs are IPX4-certified to handle splashing and steam from any direction. That’s the certification that matters in a shower environment, where steam and water contact are constant rather than occasional.
Our shower TVs install directly into your shower wall, flush with the tile. No edges protrude into the shower space, there’s no visible mount, and nothing to catch water or interrupt the design of the room.
Shower viewing distances are short: typically four to six feet. A 24″ screen is the right starting point for most shower installations, delivering a sharp, comfortable picture at close range without overwhelming the space.
The AVS240SM mirror Smart TV is a built-in waterproof TV that is suitable for installation in bathrooms, kitchens, swimming pools and other areas. Its minimalistic design looks great in any interior.
When it is turned off, the built-in TV looks like an ordinary mirror. But if you turn it on, a bright high-quality LED LCD screen with a size of 23.8 inches will appear on the mirror. This is an amazing sight that is sure to surprise you and your friends!
This mirror TV is built into the wall using a special box, and the cover on the case additionally protects all wires from moisture. Vibration speakers are placed behind the glass, they provide clear and surround sound. If you want, you can also connect amplifiers and soundbars.
Model: AVS240SM (Mirror)
Smart TV: Yes
Screen Finish: Magic Mirror
Frame Material: Steel
Screen Material: Glass
Waterproof Rating: IP65 Front , IPX4 Back
Screen Size: 23.8″ (61 cm)
Screen Type: LED LCD
Resolution: Full HD (1920×1080)
Brightness: 700 cd/m2
Aspect Ratio: 16:9
Contrast Ratio: 1000:1 (typ.)
Colour Depth: 16.7 million
Viewing Angle 178°/178° (H/V)
OS: Android, OS version, 11 (AOSP)
APP: Google Play Store,Chrome
CPU: RTD2843 ARM Cortex-A55 up to 1.1GHz (Quad core)
GPU Mail G31*2-High speed 700MHz RAM, DDR3 1.5G, Storage 8G
Speakers : 2 x Internal Vibration Speakers
Output: 2*5W/8Ohms
DTV Tuner: DVBT/T2/C/S/S2/ATSC(support H.264/H.265, Dolby+)
Analogue Tuner: Video: NTSC/PAL/PAL-M/PAL-N, Audio: BG/DK/I
USB Host: Video, pictures and music from USB flash / HDD
Supported File Types
Video: MPEG1/2/4,H.264*,H.265*,WMV*,VC1,VP8,VP9,RM*,AVS*,AVS2.0*,Sorenson,Motion JPEG,H.263,AV1,
Audio: PCM,AMR,LPCM,RA*,MPEG1/2/4,AAC*,WMA*,Dolby AC3*,Dolby EAC3*,Dolby AC4*,Dolby*,MPEG-H,DRA,FLAC,VORBIS,
Image: *.JPG,*.BMP,*PNG,*.GIF,.MPO,.JPS,.PNS
Wi-Fi: 2.4G/5G, IEEE 802.11 a/b/g/n/ac ,1T1R, 229.4Mbps,Support Wifi 6
Ethernet: RJ45 10/100M auto-identification and DHCP
Bluetooth: V2.1+EDR/V3.0/V4.x/V5.0
TV In / Aerial: 1 x ICE TYPE TV(75ohm, DVB-T/T2/C/Analogue), 1 x F TYPE TV (S/S2) or 1 x F TYPE(ATSC)
HDMI Input: 2 (HDMI1-ARC,HDMI1&2-CEC)
USB: 2 (USB2.0)
Earphone: 1
CI slot (CI +): 1 (ATSC not available)
IR pass through: 1
DC In (12V): 1
Working Temperature: 0°C – +50°C
HDMI-CEC (Anynet) Control
TV can turn on/off automatically when connected to STB or Smart TV box by HDMI
HDMI-ARC
Audio Return Channel,TV can return the audio to Amplifier or ARC device
Product Size
25.55″ *18.22″ *2.20″ (WxHxD)
Product Weight
31.7 lb
Shipping Size
34.8″ *5.9″ *21″ (WxHxD)
Shipping Weight
37.5 lb
Recess Size (in-wall installation)
24.92″ *16.93″ *2.17″ (WxHxD)
Wall Mount Compatibility (on-wall installation)
Vesa (100*100 mm)
CE, ROHS, EAC
Yes
IPx4 Waterproof Rating
Yes
Mains Power
AC 100-240V (DC 12V/4.25A adaptor)
Power Consumption
39 W
Standby Power Consumption
0.27 W
Warranty
1 Year (manufacturing defects in materials and workmanship)
Remote Control with Wall Holder
1 pcs (IP66 waterproof, protection against water jets — don’t immerse in water!)
Air Mouse (BT voice remote control)
1 pcs (Non-Waterproof)
Power Adapter
1 pcs
Power cable
1 pcs
Back Box
1 set (with set of screws for in-wall installation)
User Manual & Installation Guide
1 set
Extreme heat tested
Water and steam resistant
For durability and reliability
Our TVs have achieved IPx4 certification. This means they’re splash and steam proof, making them ideal for bathrooms, kitchens, saunas, pool rooms, and more.
Extreme heat tested
Water and steam resistant
For durability and reliability
Built solidly from metal and glass, our TVs are certified heat resistant up to 175 degrees. Which is more than you’ll ever need for all but the most extreme home or sauna environments.
Our TVs have achieved IPx4 certification. This means they’re splash and steam proof, making them ideal for bathrooms, kitchens, saunas, pool rooms, and more.
Standard televisions are built primarily from plastics. Our TVs are hand-built with steel and real glass. You’re bringing durable quality home with Parallel AV, ready for any room in your home.
Unique and stylish finishes
Flush with the wall
Visible speakers or wires
Our bathroom televisions come in three unique finishes. The simple white and black frames complement any modern bathroom design. Our Magic Mirror finish can replace your current bathroom mirror with an ultra-bright, high-resolution television.
Bathroom space is always at a premium. Our televisions install flush into the wall, to either replace a bathroom mirror or to stylishly stay out of the way.
Once installed, all you will ever see of our bathroom televisions is the screen. The TV’s speakers are hidden behind the TV screen and all wires and cables can be hidden in the wall.
Certified water-resistant
For protection
Of streaming services
Certified IPx4 water- and steam-resistant, our Sauna Televisions are environmentally sealed to keep water and humidity from affecting the electronics inside.
Encased in steel and glass rather than plastics, our Sauna Televisions are purposefully designed to perform in extreme sauna environments over long periods of time.
With Google TV built-in, you can stream from your favorite apps or even cast your own videos or content from another device. Without the risk of losing your connection. Or even your picture.
Certified and tested
High-temp performance
Limited warranty
Tested and certified for continuous performance up to 175° F and for short-term performance up to 212°, our Sauna Televisions keep up with whatever you throw their way.
Tested for up to an hour in high-heat environments, your Sauna Television will keep playing for longer than you’ll want to be in your sauna.
Our Sauna Televisions are backed by a one year limited warranty for added confidence and support, with options to extend as needed.
Touch panel options
Of apps at your fingertips
Remotes, just in case
Turn the TV on and off, the volume up and down, change the channel, or fire up an app with the touch of your finger.
If your fingers are just too messy, our touch screen Kitchen Cabinet Televisions also come with two separate remote controls: a splashproof remote to control the TV no matter what, and a Google TV remote to give you extra control over your streams and apps.
And because our screens are made of tempered safety glass, they’re easy to wipe clean. Just in case you had more cookie batter on your hands than you thought.
Lost counter or cabinet space
Interates perfectly with standard US kitchen cabinets
Unique and stylish finishes (black, white, Magic Mirror)

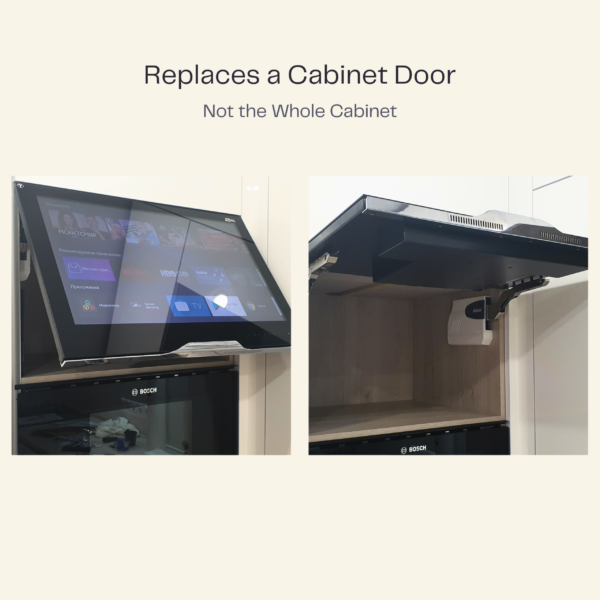

Because our Kitchen Cabinet Televisions integrate into your cabinetry, they don’t take up the counter space of a standard or under-cabinet television. And because they replace only the cabinet door, you can still use all the cabinet space behind them.
Our Kitchen Cabinet Televisions come in white, black or Magic Mirror finishes to complement any modern kitchen. And they integrate directly into your cabinetry, just like a built-in microwave or oven. You’ll forget there’s a TV there. Until you turn it on.
Our 24” Kitchen Cabinet TVs come in 455x600mm and 382х600mm forms. Our 32” models are sized at 756x514mm. These are all standard cabinet widths, meaning there’s an option for nearly all kitchen cabinet plans and designs.
of our in-wall TVs ship with pre-fitted installation brackets
maximum depth required for a flush-to-the-wall installation
frames required, even when wall-mounted
Every in-wall television we ship comes with pre-fitted installation brackets to ensure that your television installs perfectly flush to the wall every time.
Our largest televisions require fewer than three inches of in-wall depth for a flush installation. And that required depth shrinks as you move to smaller TVs.
Unlike most commercial mirror televisions, you’ll never need to put a frame around one of our Magic Mirror TVs, or any of our TVs. Unless you want to.
Of services and apps
Different remotes
Up to 10 distinct AV inputs
Over 10,000 apps available on the Google Play Store for Android TV and Google TV in the US, and the ability to cast video from another device.
Most of our TVs ship with two remotes. One is a splashproof television remote, for more extreme setups. The other is a Google TV remote to help you unlock even more Google TV capabilities.
We offer as many inputs and outputs, and the wireless connectivity, that you’d expect from a typical black-box television.
candelas per square meter
resolution
big black boxes
Our TVs use high-end, ultra-bright panels to ensure a beautiful picture in the brightest rooms, including your kitchen or bathroom. Our ultra-bright panels are even bright enough to cut through a steamy shower or sauna.
Our 32” and smaller TVs feature ultra-bright, high-definition picture panels. Our larger models feature ultra-bright 4K Ultra HD panels. You get the resolution you need without paying for resolution you don’t need.
Unlike a standard television, our TVs are built to be beautiful in any room. Even when turned off.
Resolution on our larger models
Of available apps and services
Of sizes, screen types, and stylish finishes
Our up-to-4K resolution and ultra-bright panels ensure a picture worthy of your most beautiful room. Not to mention how great our TVs look even when turned off.
Most of our televisions are powered by Google TV. Easy access to your favorite streaming services and apps such as Netflix, YouTube, and Hulu. Plus more than enough ins and outs to handle your devices.
With screen sizes from 24″ to 75″, and finishes like white and black frames and Magic Mirror screens, there’s a Parallel AV TV to enhance any room of your home.
A one-man job for our smaller and medium size TVs
In-wall brackets included with every wall model
Days a week customer support
Our TVs are designed to be installed simply and effectively by the average handyman. Our in-wall TVs ship with the in-wall brackets. Our kitchen TVs literally replace your kitchen cabinet door.
Prefer to hang your TV on the wall or fasten it to an adjustable mount? We have you covered. Worried that our TV won’t fit your cabinets? We have options. And if you need something custom-made, our custom shop can likely get it done.
If you run into a problem or can’t figure something out, shoot us a note or give us a call.
Of beautified wall space
Retained counter and cabinet space
From the wall, when in-wall installed
Our TVs are designed to replace the unattractive TVs already in your home. Replace your bathroom mirror with a 24″ model, completely re-imagine your TV room with a 75″ model, or find the perfect option in between.
Unlike countertop or under-counter kitchen televisions, Parallel AV Kitchen Cabinet TVs replace your kitchen cabinet door. Keep all your valuable counter space without sacrificing your valuable cabinet space.
You can hang our TVs on your wall if you like, but they’re designed to be installed into the wall. You can choose to never have a big, bulky television taking up space or overwhelming your room again.
