Almost every person who is busy renovating their home thinks about buying a small TV for the kitchen. Indeed, it is difficult to imagine cozy evenings with your loved ones without this device. However, modern TVs will delight you not only with the image quality, but also with advanced functionality.
The AVS240WS Smart TV in the kitchen is equipped with a Full HD screen and built-in speakers. The front panel is protected from moisture, which guarantees long-term operation of this device in the kitchen. You can install a Smart TV above the sink, stove, or oven.

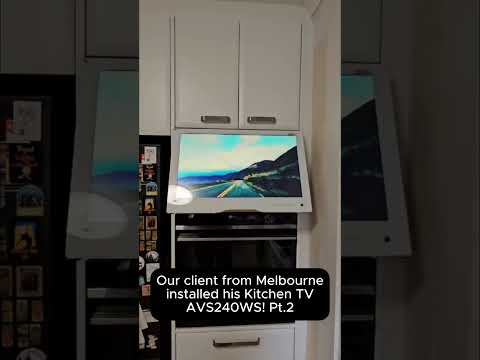

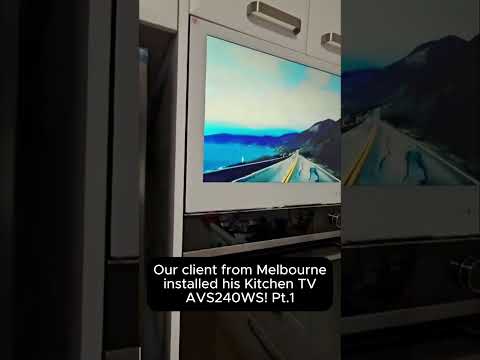

The built-in TV is located in the kitchen set, replacing one of the cabinet doors. This installation method is preferable for small rooms, because the space behind the TV will still be available for use.
Kitchen TV with Wi-Fi runs on Android TV OS, you can install all the useful and necessary apps from Google Play. And the built-in digital tuner will provide high-quality reception of basic TV programs.
Show all
Collapse description
Weight of goods in the package: 10550 g
Package dimensions:
694 x 483 x 150 mm
Specifications
- Mechanisms
- DTC top stay SF NEW PUSH lift system
- Model
- AVS240WS (White)
- Smart TV
- Yes
- Screen Finish
- White Frame
- Frame Material
- Steel
- Screen Material
- Tempered Safety Glass
- Screen Size
- 23.8" (61 cm)
- Screen Type
- LED LCD
- Resolution
- Full HD (1920x1080)
- Brightness
- 250 cd/m2
- Aspect Ratio
- 16:9
- Contrast Ratio
- 1000:1 (typ.)
- Colour Depth
- 16.7 million
- Viewing Angle
- 178°/178° (H/V)
- OS
- Android
- OS version
- 11 (AOSP)
- APP
- Google Play Store, Chrome
- CPU
- RTD2843 ARM Cortex-A55 up to 1.1GHz (Quad core)
- GPU
- Mail G31*2-High speed 700MHz
- RAM
- DDR3 1.5G
- Storage
- 8G
- Speakers
- 2 x Internal Speakers (support external BT speaker)
- Output
- 2*5W/8Ohms
- DTV Tuner
- DVBT/T2/C/S/S2/ATSC(support H.264/H.265, Dolby+)
- Analogue Tuner
- Video: NTSC/PAL/PAL-M/PAL-N, Audio: BG/DK/I
- USB Host
- Video, pictures and music from USB flash / HDD
- Supported File Types
- Video: MPEG1/2/4,H.264*,H.265*,WMV*,VC1,VP8,VP9,RM*,AVS*,AVS2.0*,Sorenson,Motion JPEG,H.263,AV1,
Audio: PCM,AMR,LPCM,RA*,MPEG1/2/4,AAC*,WMA*,Dolby AC3*,Dolby EAC3*,Dolby AC4*,Dolby*,MPEG-H,DRA,FLAC,VORBIS,
Image: *.JPG,*.BMP,*PNG,*.GIF,.MPO,.JPS,.PNS
- Wi-Fi
- 2.4G/5G, IEEE 802.11 a/b/g/n/ac ,1T1R, 229.4Mbps,Support Wifi 6
- Ethernet
- RJ45 10/100M auto-identification and DHCP
- Bluetooth
- V2.1+EDR/V3.0/V4.x/V5.0
- Touch button
- Power, Menu, Volume+, Volume-, Channel+, Channel-, Source
- TV In / Aerial
- 1 x ICE TYPE TV(75ohm, DVB-T/T2/C/Analogue), 1 x F TYPE TV (S/S2) or 1 x F TYPE(ATSC)
- HDMI Input
- 2 (HDMI1-ARC,HDMI1&2-CEC)
- USB
- 2 (USB 2.0)
- Optical fiber (Digital Audio Out)
- 1
- RJ45
- 1
- Earphone
- 1
- CI slot (CI +)
- 1 (ATSC not available)
- IR pass through
- 1
- DC In (12V)
- 1
- Working Temperature
- 0°C – +50°C
- HDMI-CEC (Anynet) Control
- TV can turn on/off automatically when connected to STB or Smart TV box by HDMI
- HDMI-ARC
- Audio Return Channel,TV can return the audio to Amplifier or ARC device
- Product Size
- 23.39" *15.04" *2.05" (WxHxD)
- Product Weight
- 19.6 lb
- Shipping Size
- 27.32" *5.91" *19.02" (WxHxD)
- Shipping Weight
- 23.3 lb
- Wall Mount Compatibility (on-wall installation)
- Vesa (100 x 100 mm)
- Flip Up Lift System with Handle
- Blum HK27 (with 20S4200 front fixing bracket)
Blum HK TOP27 (22K2710 with pre-mounted screws + 20S4200 front fixing bracket)
Kessebohmer FREEflap forte-E
Hafele Free Flap 3.15 E
DTC TOP STAY SF, SF00AH, power factor 3200-9000 (h250-720). Catalog number white caps - SF00AH02A
- Flip Up Lift System with Push to Open (without Handle)
- Blum HK27T (with 20S4200 front fixing bracket) + Tip-On (956A1006)
Blum HK TOP27T (22K2710T with pre-mounted screws + 20S4200 front fixing bracket + 956A1004 Tip-On set)
Kessebohmer FREEflap forte-E + Push to Open 26-48N
Hafele Free Flap 3.15 E + Door catch 26-48N
- Slide Up Lift System with Handle
- Blum HL27/35 (with 20S4200 front fixing bracket)
Kessebohmer FREEslide Q3us + 2719180038 (Cross Bar 600mm)
Hafele Free up Q3us + 372.33.692 Crossbar alu.
- Flip Up Lift System with motorized drive
- Blum HK TOP SERVO-DRIVE SET 23KA000 + Blum plug-in transformer 12W
Kessebohmer eTouch drive for FREEflap (27 2055 7035) + cover set eTouch FREEflap gray (27 1972 7035) + Set of lifts FREEflap mini, series 107 С gr (left, right) cover gray (27 1663 7035)
- Slide Up Lift System with motorized drive
- Blum HK/HL SERVO-DRIVE SET 21FA000 + Blum plug-in transformer 12W
Kessebohmer eTouch drive for fold, slide/swing (27 2054 7035) + cover set eTouch FREEslide gray (27 1970 7035) + lever arm for FreeSlide Q - Н380-500 mm (27 1966 0006) + cross bar for façade 600mm (27 1918 0038)
- Important Note
- Lift Systems are not included — please purchase locally!
Certifications and Standards
- CE, ROHS, EAC
- Yes
- Mains Power
- AC 100-240V (DC 12V/4.25A adaptor)
- Power Consumption
- 23 W
- Standby Power Consumption
- 0.23 W
- Warranty
- 1 Year (manufacturing defects in materials and workmanship)
- Remote Control with Wall Holder
- 1 pcs (IP66 waterproof, protection against water jets — don't immerse in water!)
- Air Mouse (BT voice remote control)
- 1 pcs (Non-Waterproof)
- Power Adapter
- 1 pcs
- Power cable
- 1 pcs
- Cable Fixation Ties
- 4 pcs
- Silicone damper
- 2 pcs
- Velcro
- 2 pcs*15cm
- Screws for VESA and Blum / Kessebohmer / Hafele Mounts
- 1 set
- Installation Guide and FAQ
- 1 set
