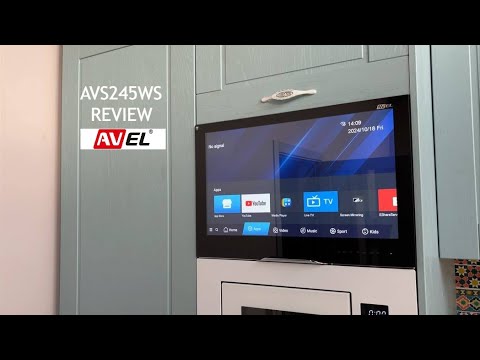

This kitchen TV has a 23.8-inch touchscreen and is installed instead of the kitchen cabinet door. The smart TV of this model combines the best features and an attractive appearance. By installing this TV in the kitchen, you will make it an interesting and modern place for the hostess or the host and guests.
The built-in kitchen TV has a 23.8-inch screen surrounded by thin black frames. The control is carried out using the touch screen of the TV; you can also use the touch buttons on the front side and a waterproof remote control or a special air mouse. It is installed in kitchen cabinets with a width of 60 cm on lifting mechanisms from Blum, Kessebohmer and Hafele (sold separately). The Cabinet Door TV will not take up precious space even in a small kitchen; the space behind it will remain fully functional and easily accessible.
Smart TV in the kitchen will appeal to any fan of smart home appliances. The digital tuner provides reception of your favorite TV channels, and the built-in media player also allows you to view files from external media. Wi-Fi TV also has access to applications in Google Play, which allows you to watch new content online.
The front side of the Smart Android TV is made of tempered glass and is protected from moisture, so it can be installed over the sink, stove or oven. Care for it the same way as for other glass surfaces, using non-abrasive detergents.
Show all
Collapse description
Weight of goods in the package: 10550 g
Package dimensions:
694 x 483 x 150 mm
Specifications
- Mechanisms
- DTC top stay SF NEW PUSH lift system
- Model
- AVS245WSBF
- Smart TV
- Yes
- Touch
- Capacitive Touch Screen
- Screen Finish
- Black Frame
- Frame Material
- Steel
- Screen Material
- Tempered Safety Glass
- Screen Size
- 23.8" (61 cm)
- Screen Type
- LED LCD
- Resolution
- Full HD (1920x1080)
- Brightness
- 250 cd/m2
- Aspect Ratio
- 16:9
- Contrast Ratio
- 1000:1 (typ.)
- Colour Depth
- 16.7 million
- Viewing Angle
- 178°/178° (H/V)
- OS
- Android
- OS version
- 11 (AOSP)
- APP
- Google Play Store, Chrome
- CPU
- RTD2843 ARM Cortex-A55 up to 1.1GHz (Quad core)
- GPU
- Mail G31*2-High speed 700MHz
- RAM
- DDR3 1.5G
- Storage
- 8G
- Speakers
- 2 x Internal Speakers(support external BT speaker)
- Output
- 2*5W/8Ohms
- DTV Tuner
- DVBT/T2/C/S/S2/ATSC (support H.264/H.265, Dolby+)
- Analogue Tuner
- Video: NTSC/PAL/PAL-M/PAL-N, Audio: BG/DK/I
- USB Host
- Video, pictures and music from USB flash / HDD
- Supported File Types
- Video: MPEG1/2/4,H.264*,H.265*,WMV*,VC1,VP8,VP9,RM*,AVS*,AVS2.0*,Sorenson,Motion JPEG,H.263,AV1,
Audio: PCM,AMR,LPCM,RA*,MPEG1/2/4,AAC*,WMA*,Dolby AC3*,Dolby EAC3*,Dolby AC4*,Dolby*,MPEG-H,DRA,FLAC,VORBIS,
Image: *.JPG,*.BMP,*PNG,*.GIF,.MPO,.JPS,.PNS
- Wi-Fi
- 2.4G/5G, IEEE 802.11 a/b/g/n/ac ,1T1R, 229.4Mbps,Support Wifi 6
- Ethernet
- RJ45 10/100M auto-identification and DHCP
- Bluetooth
- V2.1+EDR/V3.0/V4.x/V5.0
- Touch button
- Power, Menu, Volume+, Volume-, Channel+, Channel-, Source
- TV In / Aerial
- 1 x ICE TYPE TV (75ohm, DVB-T/T2/C/Analogue), 1 x F TYPE TV (S/S2) or 1 x F TYPE (ATSC)
- Optical fiber (Digital Audio Out)
- 1
- HDMI Input
- 2 (HDMI1-ARC,HDMI1&2-CEC)
- USB
- 1 (USB 2.0)
- Composite In (RCA)
- 1
- RJ45
- 1
- Earphone
- 1
- CI slot (CI +)
- 1 (ATSC not available)
- IR pass through
- 1
- DC In (12V)
- 1
- Working Temperature
- 0°C – +50°C
- HDMI-CEC (Anynet) Control
- TV can turn on/off automatically when connected to STB or Smart TV box by HDMI
- HDMI-ARC
- Audio Return Channel,TV can return the audio to Amplifier or ARC device
- Product Size
- 23.39" *15.04" *2.05" (WxHxD)
- Product Weight
- 19.6 lb
- Shipping Size
- 27.32" *5.91" *19.02" (WxHxD)
- Shipping Weight
- 23.3 lb
- Wall Mount Compatibility (on-wall installation)
- Vesa (100 x 100 mm)
- Flip Up Lift System with Handle
- Blum HK27 (with 20S4200 front fixing bracket)
Blum HK TOP27 (22K2710 with pre-mounted screws + 20S4200 front fixing bracket)
Kessebohmer FREEflap forte-E
Hafele Free Flap 3.15 E
DTC TOP STAY SF, SF00AH, power factor 3200-9000 (h250-720). Catalog number white caps - SF00AH02A
- Flip Up Lift System with Push to Open (without Handle)
- Blum HK27T (with 20S4200 front fixing bracket) + Tip-On (956A1006)
Blum HK TOP27T (22K2710T with pre-mounted screws + 20S4200 front fixing bracket + 956A1004 Tip-On set)
Kessebohmer FREEflap forte-E + Push to Open 26-48N
Hafele Free Flap 3.15 E + Door catch 26-48N
- Slide Up Lift System with Handle
- Blum HL27/35 (with 20S4200 front fixing bracket)
Kessebohmer FREEslide Q3us + 2719180038 (Cross Bar 600mm)
Hafele Free up Q3us + 372.33.692 Crossbar alu.
- Flip Up Lift System with motorized drive
- Blum HK TOP SERVO-DRIVE SET 23KA000 + Blum plug-in transformer 12W
Kessebohmer eTouch drive for FREEflap (27 2055 7035) + cover set eTouch FREEflap gray (27 1972 7035) + Set of lifts FREEflap mini, series 107 С gr (left, right) cover gray (27 1663 7035)
- Slide Up Lift System with motorized drive
- Blum HK/HL SERVO-DRIVE SET 21FA000 + Blum plug-in transformer 12W
Kessebohmer eTouch drive for fold, slide/swing (27 2054 7035) + cover set eTouch FREEslide gray (27 1970 7035) + lever arm for FreeSlide Q - Н380-500 mm (27 1966 0006) + cross bar for façade 600mm (27 1918 0038)
- Important Note
- Lift Systems are not included — please purchase locally!
Certifications and Standards
- CE, ROHS, EAC
- Yes
- Mains Power
- AC 100-240V (DC 12V/4.25A adaptor)
- Power Consumption
- 24 W
- Standby Power Consumption
- 0.23 W
- Warranty
- 1 Year (manufacturing defects in materials and workmanship)
- Remote Control with Wall Holder
- 1pcs (IP66 waterproof, protection against water jets — don't immerse in water!)
- Air Mouse (BT voice remote control)
- 1pcs (Non-Waterproof)
- Power Adapter
- 1 pcs
- Power cable
- 1 pcs
- Cable Fixation Ties
- 4 pcs
- Silicone damper
- 2 pcs
- Velcro
- 2 pcs*15cm
- Screws for VESA and Blum / Kessebohmer / Hafele Mounts
- 1 set
- Installation Guide and FAQ
- 1 set
